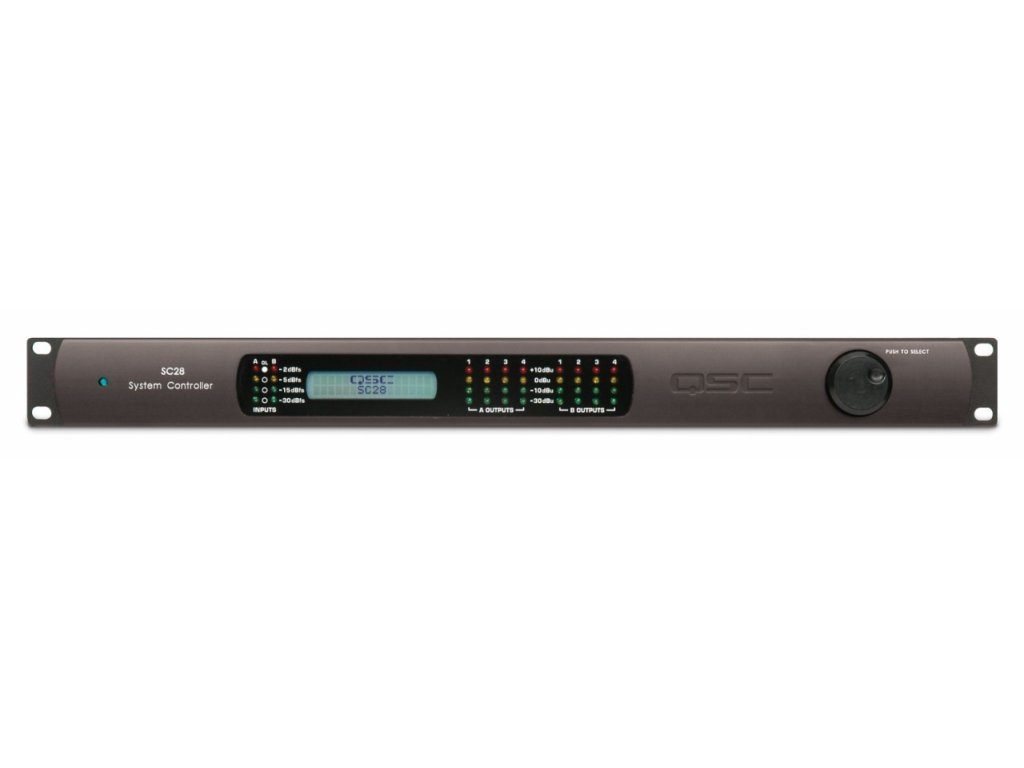

QSC SC-28

Detailní popis produktu

digitální procesor DSP

Features:

Two (2) XLR line-level inputs Eight (8) XLR line-level outputs Front panel meters for all inputs and outputs Universal AC power input Rear-panel USB port for quick and easy loading of new loudspeaker tunings

Front Panel Control:

Quickly set up your loudspeaker system to perform and sound as designed by QSC engineers

QSC Loudspeaker Selection:

Select the QSC loudspeaker and configuration (2-way, 3-way, etc.) and the SC28 instantly reconfigures itself for optimal audio reproduction

QSC Amplifier Selection:

Select the QSC amplifier being used to calibrate the processor to the amplifier for proper balance and loudspeaker protection

User-Adjustable Input EQ:

Six (6) parametric filters with adjustable frequency, gain and bandwidth High and low shelf filters with adjustablefrequency, gain and slope

User-Adjustable Delays:

Sub delay adjustable from 0.00 to 50.00 ms Array delay adjustable from 0.00 to 20.00

Subwoofer Management:

Select stereo or mono-summed subwoofer Adjustable subwoofer gain System is optimized for operation with or without subwoofer

Loudspeaker Protection:

Optimized thermal and excursion protection for each transducer User-bypassable for output clip-limiting only

Channel Linking:

Select linked or independent control of stereo channel settings
